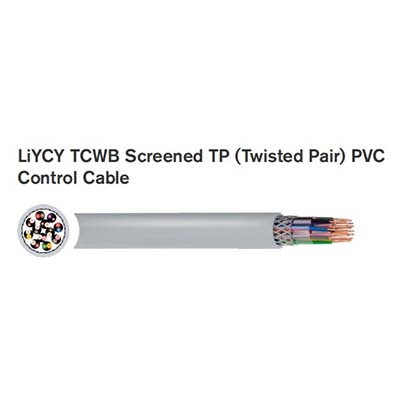

APPLICATION

To be installed in dry and humid rooms and used as a

termination and connection cable in the control, measuring and

signal technology.

CHARACTERISTICS

Voltage Rating

0.14mm2: 350V

Above 0.14mm2: 500V

Test Voltage

0.14mm2: 800V

Above 0.14mm2: 1200V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: +5°C to +50°C

Minimum Bending Radius

Fixed: 10 x overall diameter

CONSTRUCTION

Conductor

Fine-stranded copper conductor

Insulation

PVC (Polyvinyl Chloride)

Separator

Plastic foil tape

Screen

TCWB (Tinned Copper Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

Pair 1: White Brown

Pair 2: Green Yellow

Pair 3: Grey Pink

Pair 4: Blue Red

Pair 5: Black Violet

Pair 6: Grey/Pink Red/Blue

Pair 7: White/Green Brown/Green

Pair 8: White/Yellow Yellow/Brown

Pair 9: White/Grey Grey/Brown

Pair 10: White/Pink Pink/Brown

Outer Sheath Colour

Grey

STANDARDS

DIN VDE 0812

Flame Retardant according to: IEC/EN 60332-1-2
