APPLICATION

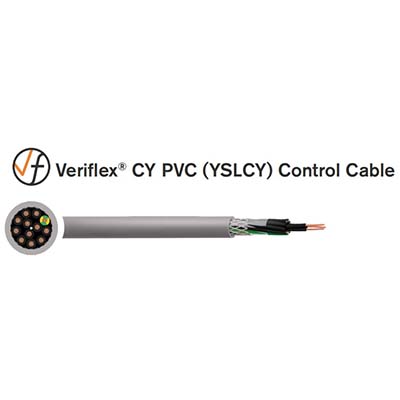

Veriflex® screened flexible connecting cables for

instrumentation and control equipment, for tooling machinery

production lines and, in flexible applications for free movement

without tensile load. Suitable for use in dry, moist and wet

rooms. These cables are not used for outdoor or underground

installation.

CHARACTERISTICS

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

PVC (Polyvinyl Chloride)

Separator

PET (Polyester Tape)

Screen

TCWB (Tinned Copper Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

Black with White number

From 3 cores: Black with White number + Green/Yellow

Colour-coded cores available upon request

Sheath Colour

Grey

STANDARDS

VDE 0207-363-3, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2
