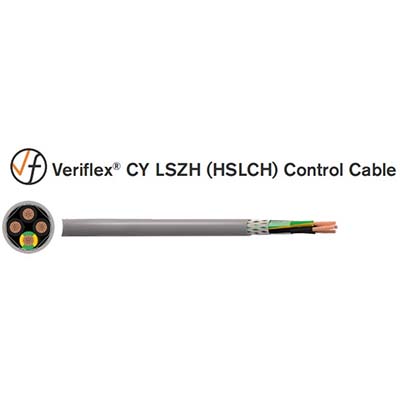

APPLICATION

Veriflex® low smoke halogen-free flexible screened cable for

instrumentation and control equipment in tooling machinery,

production lines, and flexible applications with free movement

without tensile load. Suitable for use in dry, ambient and wet

rooms. The screen protects against external interference

pulses for interference-free transmission. These cables are not

used for outdoor or underground installation.

CHARACTERISTICS

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -15°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

LSZH (Low Smoke Zero Halogen)

Separator

PET (Polyester Tape)

Screen

TCWB (Tinned Copper Wire Braid)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

Black with White number

From 3 cores: Black with White number + Green/Yellow

Colour-coded cores available upon reques

Sheath Colour

Grey

STANDARDS

VDE 0207-303-7,

Flame Retardant according to IEC/EN 60332-1-2,

IEC/EN 60332-3-24

Low Smoke Zero Halogen according to IEC/EN 60754-1/2,

IEC/EN 61034-2
