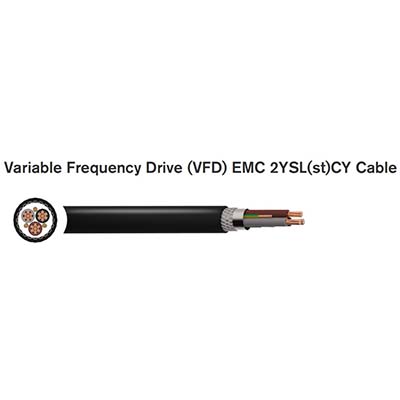

The cable has been developed for connecting motors to

inverse rectifiers under consideration of EMC (electromagnetic

compatibility) requirements. It may be used under medium

mechanical stress for fixed installations and temporary

movement. This cable offers a good resistance against oil and

grease. Suitable for outdoor installation but not direct burial.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -30°C to +70°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 10 x overall diameter

Flexed: 25 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

PE (Polyethylene)

Screen

Aluminium-Foil

Braid

TCWB (Tinned Copper Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

3 core + earth: Grey Brown Black Green/Yellow

4 core: Grey Brown Black Green/Yellow

Sheath Colour

Black

STANDARDS

Flame Retardant according to IEC/EN 60332-1-2
