APPLICATION

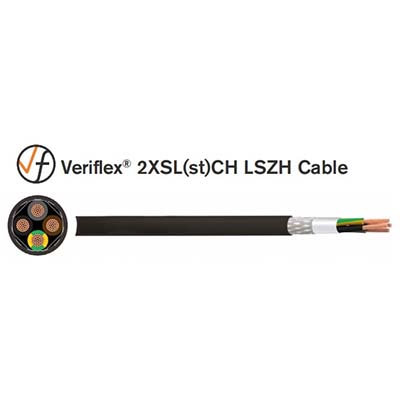

Veriflex® double screened low capacitance motor supply cable

for frequency converters. The screen protects against

external interference pulses and ensures an interference-free

transmission. Suitable for outdoor application (direct burial

not recommended), and for use on tray or in trunking.

CHARACTERISTICS

Voltage Rating

0.6/1kV

Temperature Rating

Fixed: -30°C to +80°C

Flexed: -5°C to +40°C

Minimum Bending Radius

Fixed: 7.5 x overall diameter

Flexed: 15 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

XLPE (Cross-linked Polyethylene)

Separator

PET (Polyester Tape)

Screen 1

Al/PET (Aluminium Polyester Tape)

Screen 2

TCWB (Tinned Copper Wire Braid)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

Green/Yellow Brown Black Grey

Sheath Colour

Black

STANDARDS

DIN EN 50267-2, IEC/EN 60228, IEC 60502-1

Flame Retardant according to DIN/BS EN/IEC 60332-1-2

Low Smoke Zero Halogen according to IEC/EN 61034-1/2,

IEC/EN 60754-1/2
